Building your first XUL application - step 2

---

• Open project.xul and change the existing code after the xmlns: declarations to match the following:


          <!-- main top level container -->

          <vbox flex="1" class="test_v">

           <label value="vbox 1 - the top level container"/>



           <hbox flex="1" class="test_h">

           <label value="hbox a - inner container"/>



            <!-- a container for some kind of list -->

            <vbox flex="1" class="test_v">

            <label value="vbox 2 - left navigation area"/>

            </vbox>



            <!-- container for messages and tool areas -->

            <vbox flex="2" class="test_v">

            <label value="vbox 3 - right content area"/>



             <!-- used to display message -->

             <hbox  id="contentArea"  flex="3" class="test_h">

             <label value="hbox b - login area"/>

             </hbox>



             <!-- used to display typing area  -->

             <hbox flex="3" class="test_h">

             <label value="hbox c - typing area"/>

             </hbox>



             <!-- used to display tool area-->

             <hbox flex="1" class="test_h">

             <label value="hbox d - tool area"/>

             </hbox>



            </vbox>



           </hbox>



          </vbox>

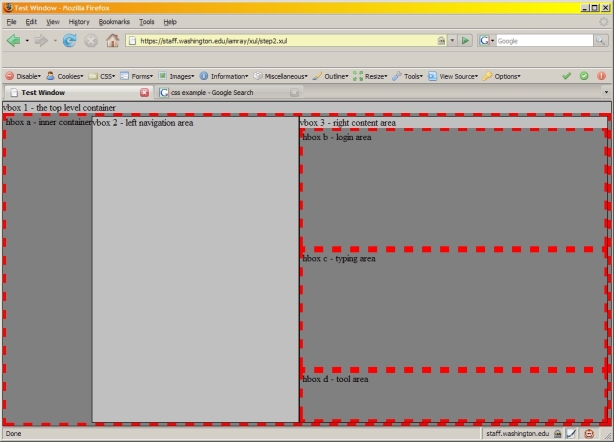

From Firefox, navigate to the XUL file location and open it. The result should look like the following:

Note that the inner container (hbox a) is visible because of the amount of space its label takes up.
